In earlier chapters, we have analysed variability in one response variable at a time. But many biological questions are intrinsically multivariate:
When we have many response variables, two practical problems appear:
Ordination is a family of methods that helps with both.
It can also help in cases where we have many explanatory variables (e.g. environmental gradients). This can be especially useful when predictors are collinear.
Core idea
Ordination finds a low-dimensional representation (often 2D) of multivariate data, so that points that are “similar” in the original multivariate space end up close together in the ordination plot.
We will use a classic dataset of human skull dimensions measured in millimeters. The biological question is:
Has skull shape changed through time?

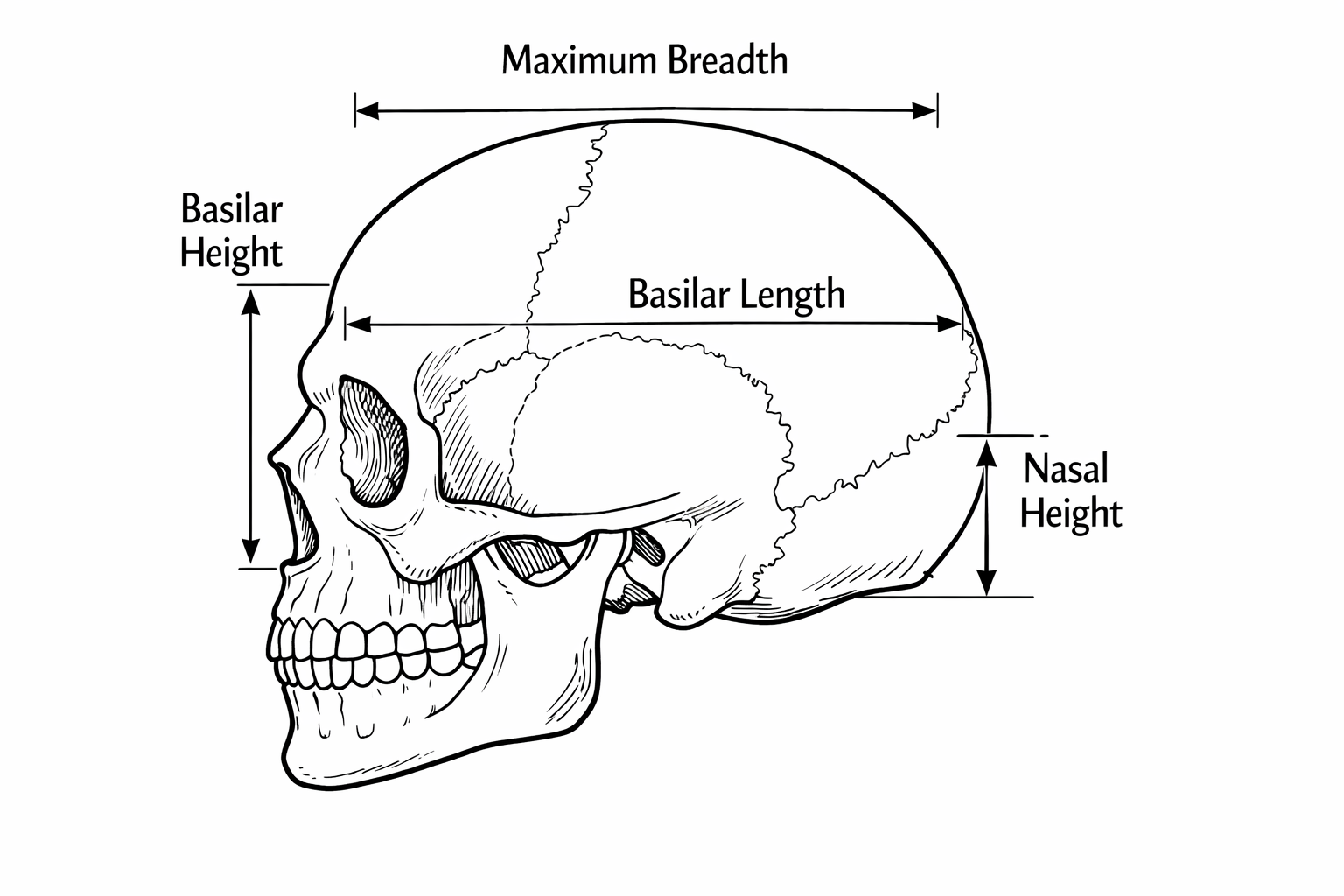

Four measurements of skull were made:
We will treat the four skull measurements as multivariate responses, and time as an explanatory variable.
First read the dataset from the csv file:
skull <- read_csv(here("datasets", "skull_shape_time.csv"))Rows: 150 Columns: 6
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
chr (1): id
dbl (5): max.breadth, basi.height, basi.length, nasal.height, thousand.years
ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.Multivariate data often come in wide format:
That’s great for many ordination functions.
But long format is often easier for: - grouped summaries - plotting multiple variables with a single ggplot call
We can easily make a long format version with pivot_longer():
skull_long <- skull |>
pivot_longer(
cols = c(max.breadth, basi.height, basi.length, nasal.height),
names_to = "dimension",
values_to = "value"
)This will make some of the following exploration easier.
A good habit:

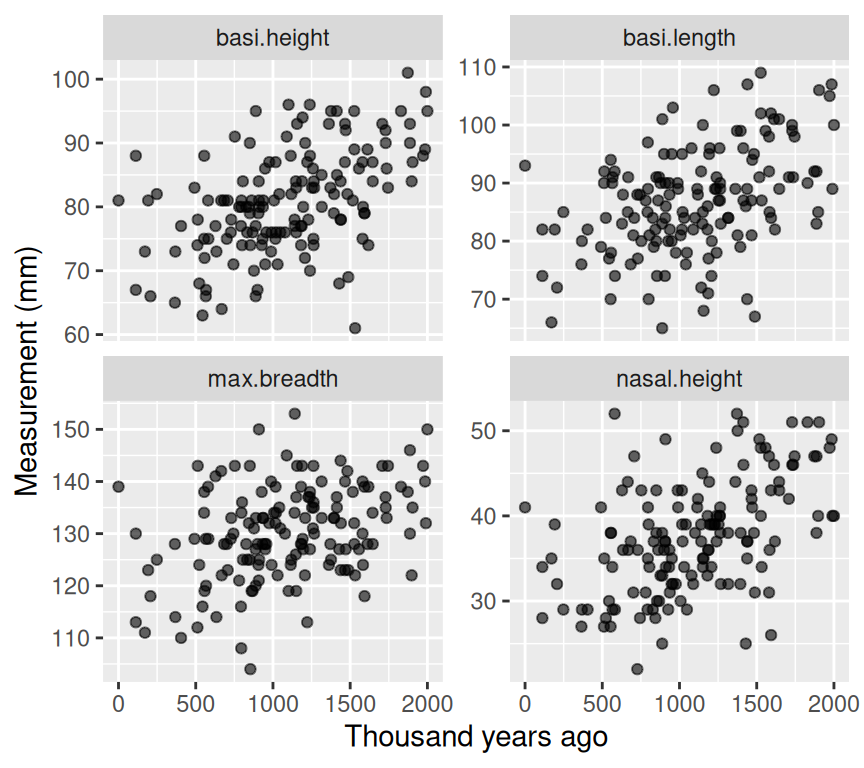

p_vars <- skull_long |>
ggplot(aes(x = thousand.years, y = value)) +
geom_point(alpha = 0.6) +
facet_wrap(~ dimension, scales = "free_y", ncol = 2) +
labs(x = "Thousand years ago", y = "Measurement (mm)")

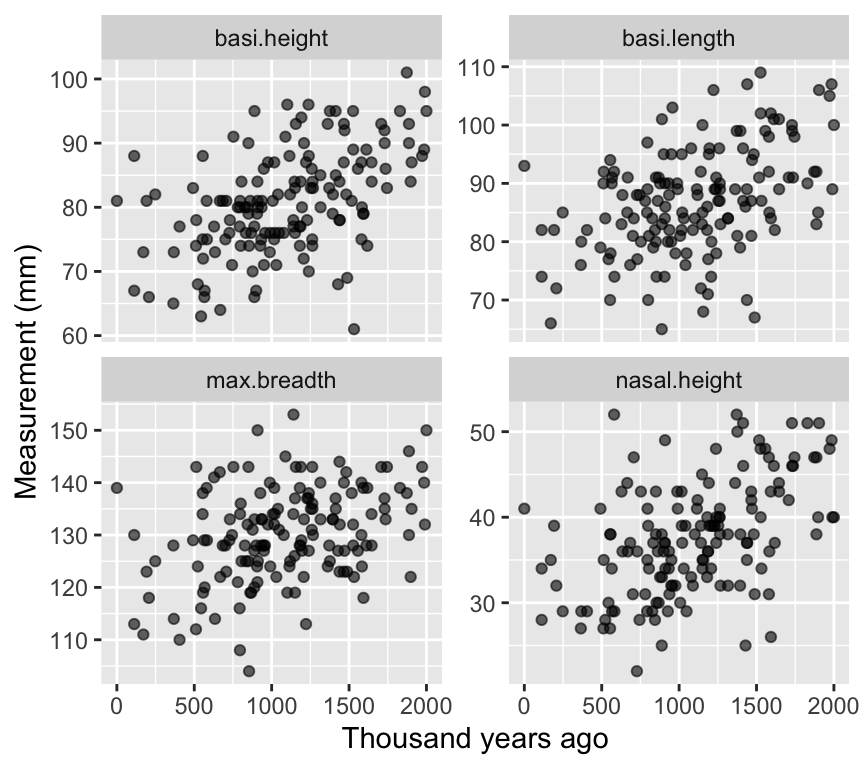

p_vars
Interpretation (qualitative):
If all dimensions change similarly through time, that’s mostly a size change. If some change differently, that suggests shape change.
Fitting separate regressions for each measurement has two problems: 1. Multiple testing: testing four times increases the chance of false positives. 2. Ignoring covariance: measurements may be correlated, so analyzing them separately misses joint patterns
PCA is the most common entry point.
What PCA does
PCA finds new axes (PC1, PC2, …) that are: - linear combinations of the original variables - orthogonal (uncorrelated) - ordered so that PC1 captures the most variance, PC2 the next most, etc.
Imagine that each skull is a point in a space with one axis per measurement (four dimensions here). Together, the skulls form a cloud of points.
PCA asks from which direction does this cloud show the greatest spread?
To answer this, PCA rotates the coordinate system so that:
You can think of PCA as turning the data cloud until you find the view where the points are most spread out. That view becomes PC1. Then PCA finds the best second view at right angles to it (PC2).
The key idea is that PCA does not invent new information: it simply re-expresses the same data using new axes that make dominant patterns easier to see.
Under the hood, PCA is based on the covariance (or correlation) matrix of the variables. The principal components are eigenvectors of this matrix, and the amount of variance they capture is given by the corresponding eigenvalues. You do not need to compute these by hand, but this explains why PCA is fundamentally about variance and correlation.
Before PCA, we usually center and scale the data, or at least think carefully if we should.
Scaling matters if variables are on different scales or if you care about relative variation.
Note that above it is written that PCA does not change the relative positions of the points. However, if we scale the data before performing PCA, this can affect the relative positions of the points in the PCA space. Scaling ensures that all variables contribute equally to the analysis, which can be important when variables are measured on different scales. If we do not scale the data, variables with larger variances can dominate the PCA results, potentially distorting the relative positions of the points in the PCA space.
We can make these transformed variables ourself, or use the built-in options in prcomp().
So, let us do our first PCA. We must be sure to only do the PCA on the four skull measurement variables. To do this we will select only those columns from the original data frame, and pipe these into the prcomp() function:
skull_pca <- skull |>
dplyr::select(max.breadth, basi.height, basi.length, nasal.height) |>
prcomp(center = TRUE, scale. = TRUE)What is this new dataset? Part of it is the new coordinates of each skull in the PC space:
head(skull_pca$x) PC1 PC2 PC3 PC4
[1,] -3.621758 0.87923353 0.2413718 -0.2421541
[2,] -3.201426 -0.38205353 0.3833647 -0.3500371
[3,] -3.004179 -1.00242513 1.5640064 -0.2348435
[4,] -2.683398 0.08615036 1.6069216 -1.0534579
[5,] -3.001132 -0.46314398 -0.2188543 -0.7276811
[6,] -2.774762 0.09654899 0.2109694 -0.8941411Each of the new PC axes captures some of the variance in the original data. We can summarize this with:
summary(skull_pca)Importance of components:
PC1 PC2 PC3 PC4
Standard deviation 1.4916 0.8981 0.7643 0.62007
Proportion of Variance 0.5562 0.2016 0.1460 0.09612
Cumulative Proportion 0.5562 0.7578 0.9039 1.00000This shows the standard deviation of each PC axis, the proportion of variance explained by each PC, and the cumulative proportion of variance explained.
The first PC axis captures 55.6% of the variance in the original data. The first two PC axes together capture 75.8% of the variance.
This is quite a lot, so we can visualize the data well with two PC axes. When we do so, we ignore the remaining axes, which capture less variance (24.2%).
The scores are the coordinates of each skull in the new PC space. We do a bit of data wrangling to combine these with the original data (id and time):
scores <- as_tibble(skull_pca$x) |>
mutate(id = skull$id, thousand.years = skull$thousand.years)
scores |> select(id, PC1, PC2, thousand.years) |> slice_head(n = 5)# A tibble: 5 × 4
id PC1 PC2 thousand.years
<chr> <dbl> <dbl> <dbl>
1 S1 -3.62 0.879 888
2 S2 -3.20 -0.382 112
3 S3 -3.00 -1.00 854
4 S4 -2.68 0.0862 171

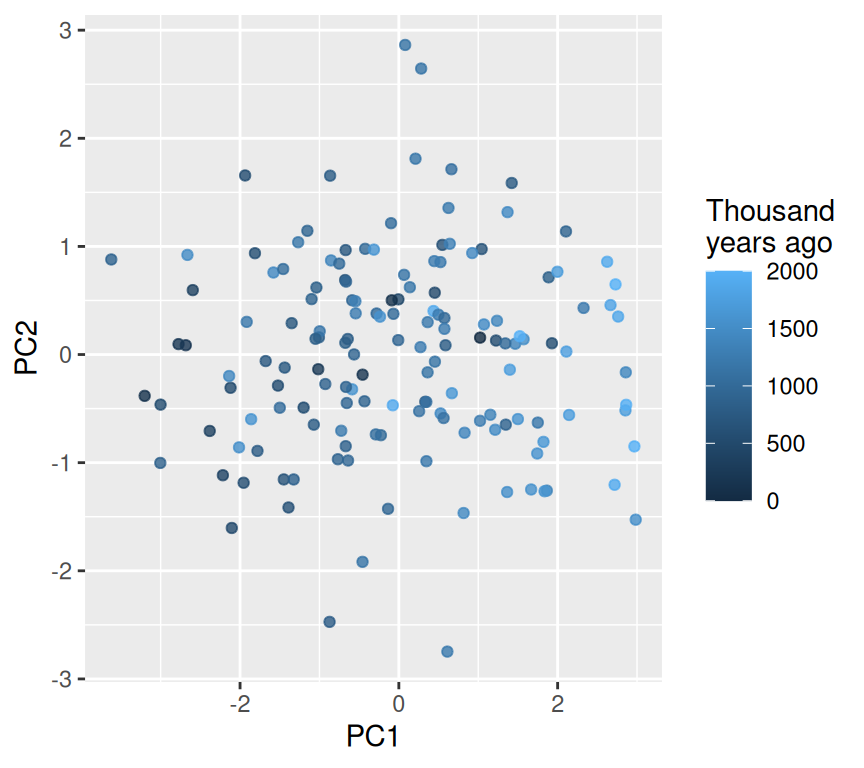

5 S5 -3.00 -0.463 544And then make the graph:

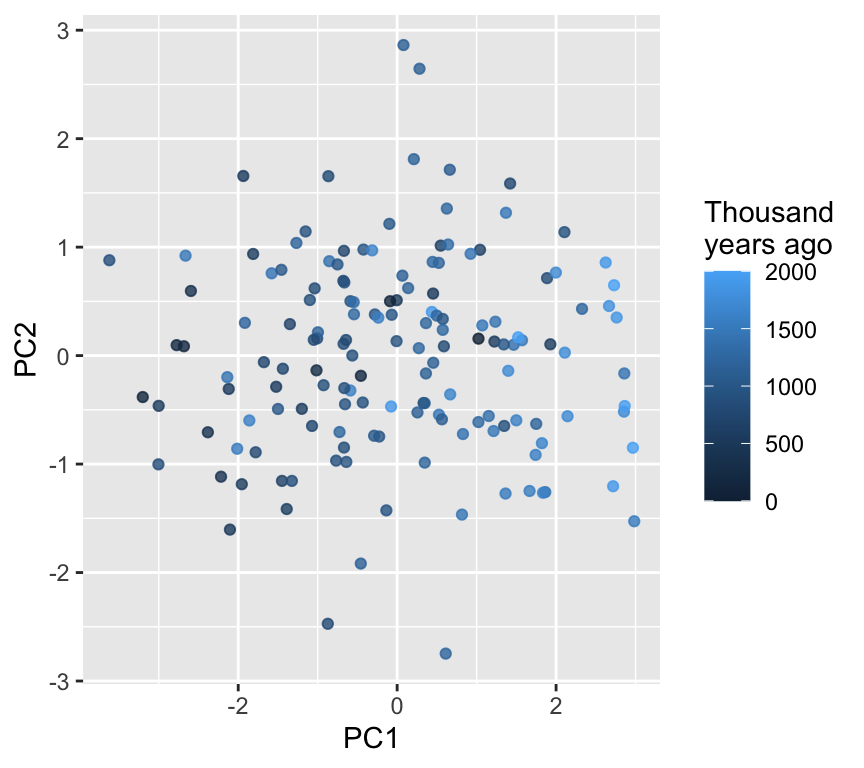

ggplot(scores, aes(x = PC1, y = PC2, color = thousand.years)) +
geom_point(alpha = 0.8) +
labs(color = "Thousand\nyears ago")
Interpretation tip
If points separate along PC1 as time increases, that suggests the dominant multivariate trend is associated with time.
The loadings tell us how each original variable contributes to each PC. In fact, each PC is a linear combination of the original variables, weighted by the loadings.
loadings <- as_tibble(skull_pca$rotation, rownames = "variable")
loadings# A tibble: 4 × 5
variable PC1 PC2 PC3 PC4
<chr> <dbl> <dbl> <dbl> <dbl>
1 max.breadth 0.436 0.689 -0.568 0.107
2 basi.height 0.536 0.108 0.643 0.537
3 basi.length 0.440 -0.712 -0.474 0.272
4 nasal.height 0.573 -0.0783 0.196 -0.792These can help us interpret the PCs. For example, we see a strong positive loading of all four skull measurements on PC1. This suggests that PC1 represents overall size, as all measurements increase together. On the second PC axis, we see a mix of positive and negative loadings, indicating that PC2 captures shape differences where some measurements increase while others decrease. The positive PC2 loadings for head breadth and nasal height, combined with negative loadings for basi height and basi length, suggest that PC2 reflects a shape change where skulls become wider and taller in the nasal region while becoming shorter in the base dimensions.
Another way to interpret PCs is to look at the correlations between the original variables and the PCs. This can provide insights into how each original variable relates to the new PC axes. We can calculate these correlations as follows:
X <- skull |>
dplyr::select(max.breadth, basi.height, basi.length, nasal.height)
round(cor(X, skull_pca$x), 2) PC1 PC2 PC3 PC4
max.breadth 0.65 0.62 -0.43 0.07
basi.height 0.80 0.10 0.49 0.33
basi.length 0.66 -0.64 -0.36 0.17

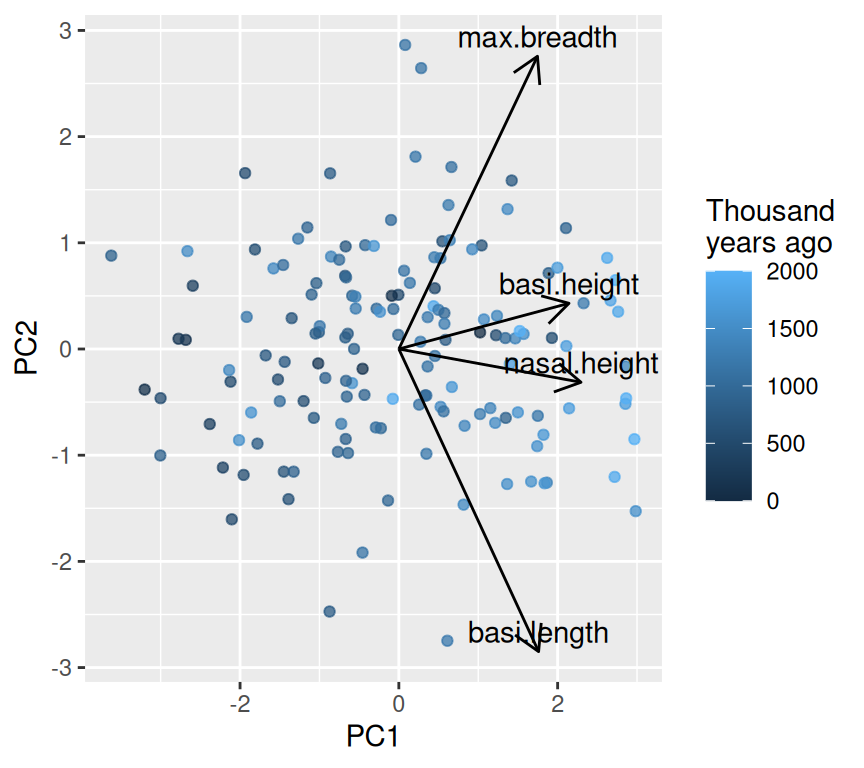

nasal.height 0.86 -0.07 0.15 -0.49Below is a lightweight biplot-style plot. (There are fancy versions in packages like factoextra, but we keep it minimal.)
In this graph we see all arrow point in the same horizontal direction, indicating that PC1 represents overall size. An increase in any of the four measurements will increase PC1.
In contrast, the arrows for PC2 point in different directions, indicating that PC2 represents shape differences where some measurements increase while others decrease. The two longest arrows are for basi.length and max.breadth, suggesting that these measurements contribute most strongly to shape variation captured by PC2.
We might think that ordination is more useful when we have a greater number of variables, because then the reducing down to two or three dimensions is more helpful. But the key factor is actually the correlation structure among the variables. If many variables are correlated, then ordination can capture most of the variance in a few dimensions. If variables are uncorrelated, then ordination may not help much since most of the variance is spread evenly across many dimensions. Let’s have a look a this with some simulated data. We will simulate three datasets with three variables each, but with different correlation structures: high correlation, moderate correlation, and low correlation.
Now a 3D plot of the simulated data with different correlation structures (please note that these plots are best viewed in the HTML version of the book; in the PDF version, they will appear as static images):
The first plot shows data with high correlation among variables, where the points are clustered along a diagonal line, indicating that the variables are strongly related. The second plot shows moderate correlation, where the points are more spread out but still show some clustering. The third plot shows low correlation, where the points are scattered randomly in space, indicating that the variables are largely independent.
We expect that in the high correlation case, the first principal component will capture a large proportion of the variance, while in the low correlation case, the variance will be more evenly distributed across all principal components. Let’s check this by performing PCA on each dataset and examining the variance explained by each principal component.
[1] 0.925377783 0.065681354 0.008940863[1] 0.6571611 0.1978438 0.1449951[1] 0.3874361 0.3586825 0.2538815It turns out that in the high correlation case, the first principal component captures a large proportion of the variance (92.5%). This is a large amount of variance explained by a single component. It is caused because we made a dataset where the variables are strongly correlated. There is only one axis along which the data vary strongly.
In contrast, in the zero correlation case, the variance is more evenly distributed across all principal components, with each component capturing around 38.7%, 35.9%, and 25.4% of the variance respectively. This indicates that there is no single dominant direction of variance in the data, as the variables are largely independent.
In the intermediate correlation case, the variance explained by each principal component is more balanced, with the first component capturing around 65.7% of the variance, and the remaining components capturing significant portions as well. This reflects the moderate correlation structure in the data.
Ordination is most useful when it can reduce the dimensionality of the data while retaining most of the variance. This means that ordination methods like PCA will be more effective in summarizing the data in the high correlation case, as most of the information can be captured in just one or two dimensions. In contrast, in the low correlation case, ordination may not provide much dimensionality reduction, as each variable contributes independently to the overall variance.
What determines if we have variables with high correlation in real datasets? Often, it is biological or physical relationships among the variables. For example, in morphological datasets, measurements of different body parts may be correlated due to overall size or shape factors. In ecological datasets, species abundances may be correlated due to shared environmental preferences or interactions. Understanding the underlying biology can help us anticipate when ordination methods will be most useful.
PCA is powerful, but it is a linear method and it relies on Euclidean geometry in the original variable space.
NMDS is often used when:
What NMDS does (conceptually)
1) compute pairwise distances among objects
2) place points in a low-dimensional space (usually 2D)
3) try to preserve the rank order of distances (non-metric)
4) report stress: lower is better (roughly: mismatch between original dissimilarities and ones in the lower-dimensional space)
Here our variables are numeric, so Euclidean distance is a reasonable default.
We will scale first (so variables contribute comparably), then compute distances:
X_scaled <- scale(X)
D <- dist(X_scaled, method = "euclidean")
#DIn NMDS, we need to choose some random starting configuration of points. And we want to make sure that we choose a good solution, not just a local optimum. Hence, we try multiple random starts and pick the best one.
In practice, use metaMDS() (from vegan) rather than calling the low-level optimizer directly. It tries multiple starting configurations and does useful housekeeping.
When calling metaMDS(), we specify the following:
k = 2 for a 2D solution.trymax = 50 to try up to 50 random starts.autotransform = FALSE because we already scaled the data ourselves.trace = FALSE to suppress output during fitting.set.seed(1)
nmds <- metaMDS(D, k = 2, trymax = 50, autotransform = FALSE, trace = FALSE)
nmds
Call:
metaMDS(comm = D, k = 2, trymax = 50, autotransform = FALSE, trace = FALSE)
global Multidimensional Scaling using monoMDS
Data: D
Distance: euclidean
Dimensions: 2
Stress: 0.1467223
Stress type 1, weak ties
Best solution was repeated 1 time in 20 tries
The best solution was from try 16 (random start)
Scaling: centring, PC rotation
Species: scores missingLots of information here, for example we have:
The stress of an NMDS solution quantifies how well the low-dimensional configuration preserves the rank order of the original dissimilarities. That is, it is a measure of mismatch between the distances in the original high-dimensional space and the distances in the reduced low-dimensional space. Here is the stress plot for our NMDS solution:

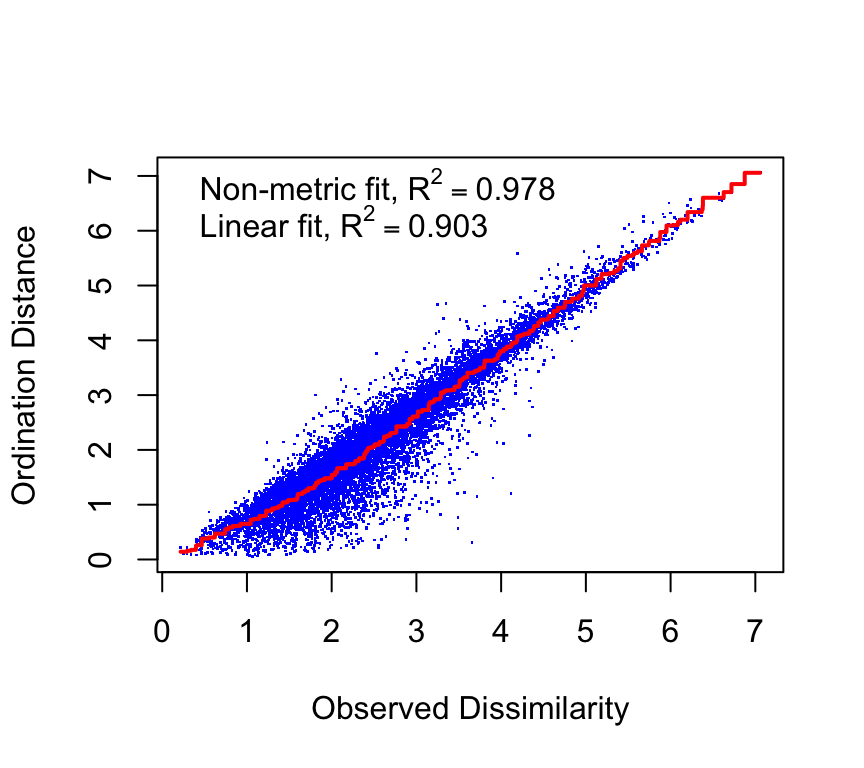

stressplot(nmds)
We see a fairly good match between the original distances and the NMDS distances. The correlations are reasonably high, indicating that the NMDS solution captures the rank order of dissimilarities well.
The stress value is another measure of fit. Lower stress values indicate a better fit. A common rule of thumb is that stress < 0.1 is a good fit, stress between 0.1 and 0.2 is acceptable, and stress > 0.2 indicates a poor fit. A poor fit suggests that the data may not be well represented in two dimensions, and a higher-dimensional solution may be needed.
nmds$stress[1] 0.1467223We are in the range of okay fit in two dimensions.
What improvement in stress do we get if we go to three dimensions?
set.seed(1)
nmds_3d <- metaMDS(D, k = 3, trymax = 50, autotransform = FALSE, trace = FALSE)
nmds_3d$stress[1] 0.07009879The stress decreases when we move to three dimensions, indicating a better fit. However, the improvement may not be substantial enough to justify the added complexity of a three-dimensional solution. In practice, we often prefer two-dimensional solutions for ease of visualization and interpretation, unless the stress reduction is very large.

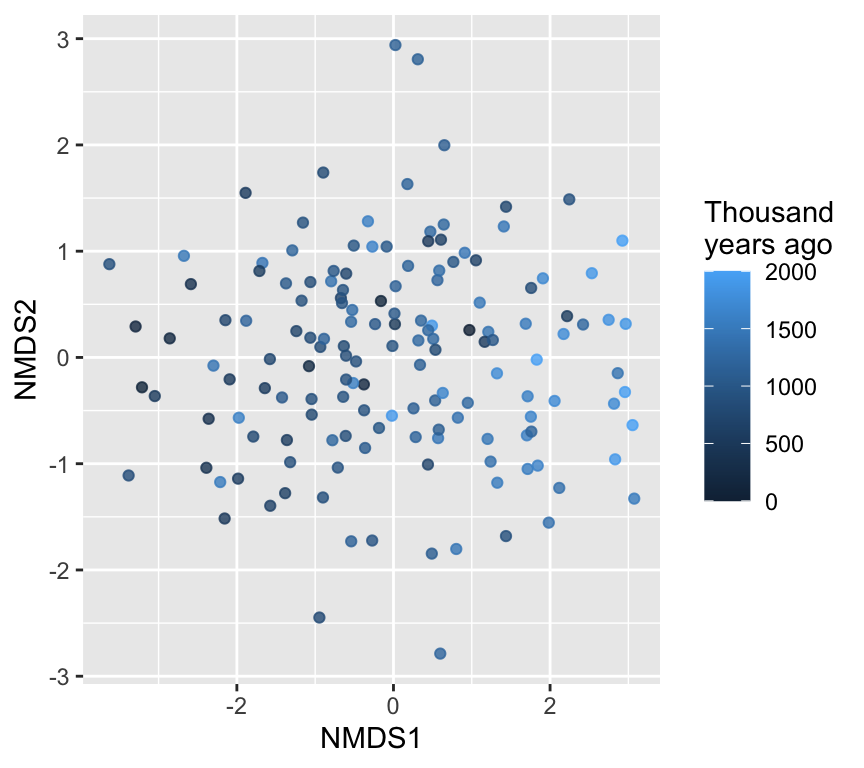

We can plot the NMDS scores, colored by time:
Axis directions are arbitrary
Flipping or rotating an NMDS solution (or a PCA) does not change its meaning. Only relative distances among points matter.
If we wanted to know the biological interpretation of the NMDS axes, we would need to look at correlations between the original variables and the NMDS axes. This is just the same as we did for PCA. We could then plot the correlations as arrows on the NMDS plot to help interpret the axes.
cor_nmds <- round(cor(X, nmds_scores |> select(NMDS1, NMDS2)), 2)
cor_nmds NMDS1 NMDS2
max.breadth 0.65 0.64
basi.height 0.80 0.03
basi.length 0.64 -0.57

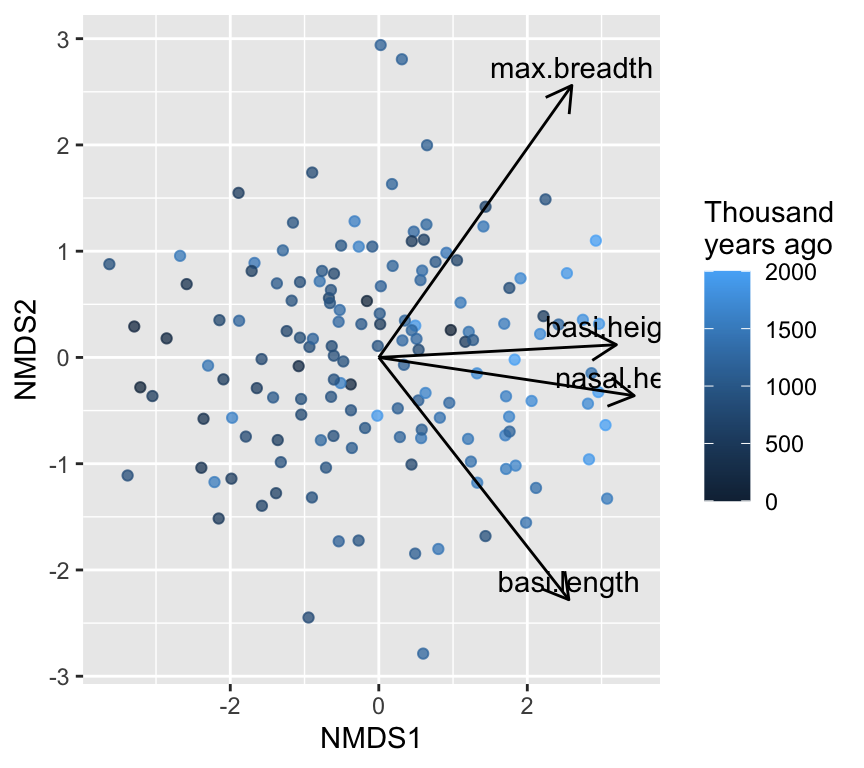

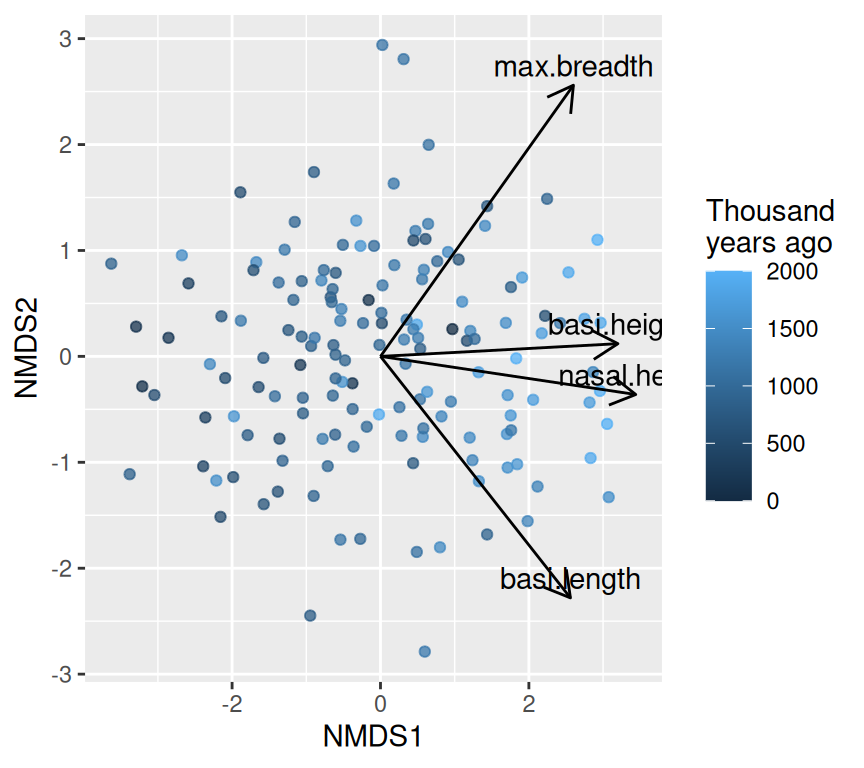

nasal.height 0.86 -0.09And plot these as arrows:
This NMDS graph looks a lot like the PCA biplot. This is because our data are fairly linear and Euclidean distances are appropriate. In more complex datasets, NMDS can reveal patterns that PCA might miss.
If you test time against each skull measurement separately, you face a multiple testing problem.
A better match to the question (“do skulls change through time in multivariate space?”) is a multivariate test.
Here are four common approaches demonstrated but not deeply explained:
Multivariate ANOVA (MANOVA) tests whether group centroids differ in multivariate space, assuming multivariate normality. The response is a matrix of multiple variables, and the explanatory variables can be categorical or continuous.
man_mod <- manova(cbind(max.breadth, basi.height, basi.length, nasal.height) ~ thousand.years,
data = skull)
summary(man_mod, test = "Pillai") Df Pillai approx F num Df den Df Pr(>F)
thousand.years 1 0.36751 21.064 4 145 1.042e-13 ***
Residuals 148
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1If we bin years into categories, MANOVA becomes closer to multivariate ANOVA:
skull <- skull |>
mutate(year_class = cut(thousand.years, breaks = 8) |> fct_inorder())
man_mod_cat <- manova(cbind(max.breadth, basi.height, basi.length, nasal.height) ~ thousand.years,
data = skull)
summary(man_mod_cat, test = "Pillai") Df Pillai approx F num Df den Df Pr(>F)
thousand.years 1 0.36751 21.064 4 145 1.042e-13 ***
Residuals 148
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1MANOVA assumptions matter
MANOVA relies on multivariate normality and homogeneity of covariance matrices. In many biological datasets, these are imperfect—so distance-based alternatives are common.
PERMANOVA tests whether group centroids differ in multivariate space, using permutations. In vegan, use adonis2().
# Use the same distance matrix D we used for NMDS
adonis2(D ~ year_class, data = skull, permutations = 999)Permutation test for adonis under reduced model
Permutation: free
Number of permutations: 999
adonis2(formula = D ~ year_class, data = skull, permutations = 999)
Df SumOfSqs R2 F Pr(>F)
Model 7 138.47 0.23234 6.1396 0.001 ***
Residual 142 457.53 0.76766
Total 149 596.00 1.00000
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1A common pitfall:
So it’s good practice to check dispersion when comparing groups.
bd <- betadisper(D, skull$year_class)
#bd
anova(bd)Analysis of Variance Table
Response: Distances
Df Sum Sq Mean Sq F value Pr(>F)
Groups 7 0.929 0.13274 0.2284 0.978
Residuals 142 82.529 0.58119 permutest(bd, permutations = 999)
Permutation test for homogeneity of multivariate dispersions
Permutation: free
Number of permutations: 999
Response: Distances
Df Sum Sq Mean Sq F N.Perm Pr(>F)
Groups 7 0.929 0.13274 0.2284 999 0.98
Residuals 142 82.529 0.58119 Even when you use an unconstrained ordination (PCA/NMDS), you may want to show how an explanatory variable aligns with it.
fit_years <- envfit(nmds ~ thousand.years, data = skull, permutations = 999)
fit_years
***VECTORS
NMDS1 NMDS2 r2 Pr(>r)
thousand.years 0.996500 -0.083553 0.3643 0.001 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Permutation: free

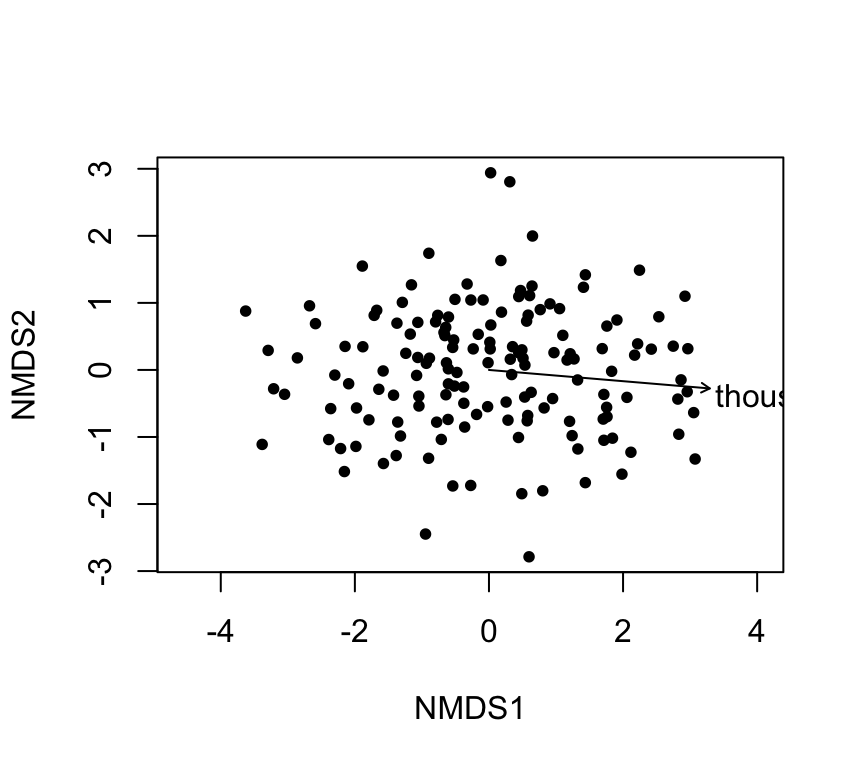

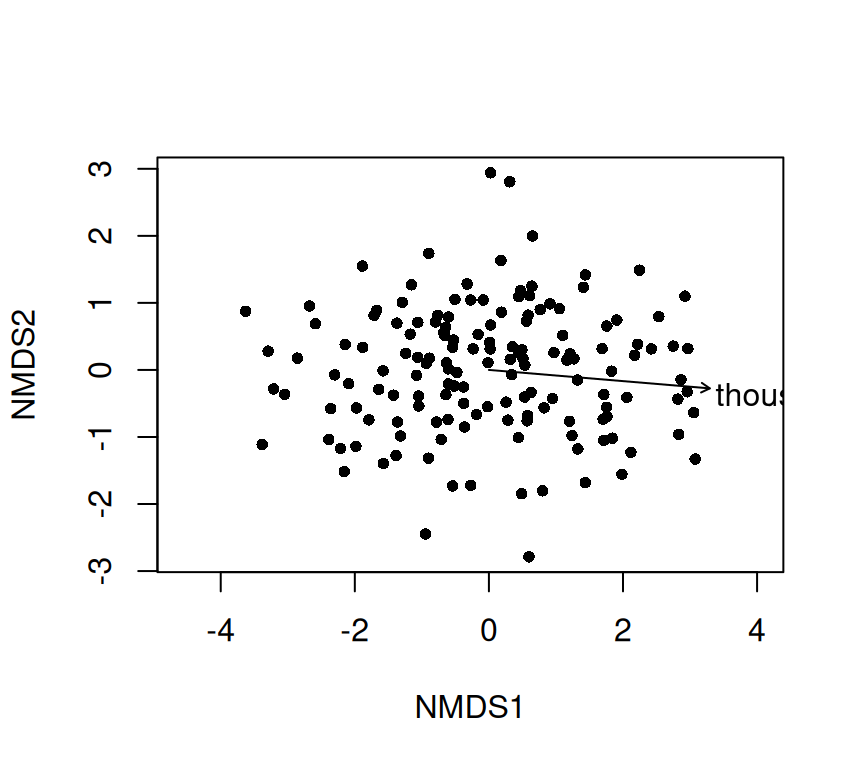

Number of permutations: 999plot(nmds, type = "n")species scores not availablepoints(nmds, display = "sites", pch = 16, cex = 0.8)
plot(fit_years, col = "black") # vector direction and significance

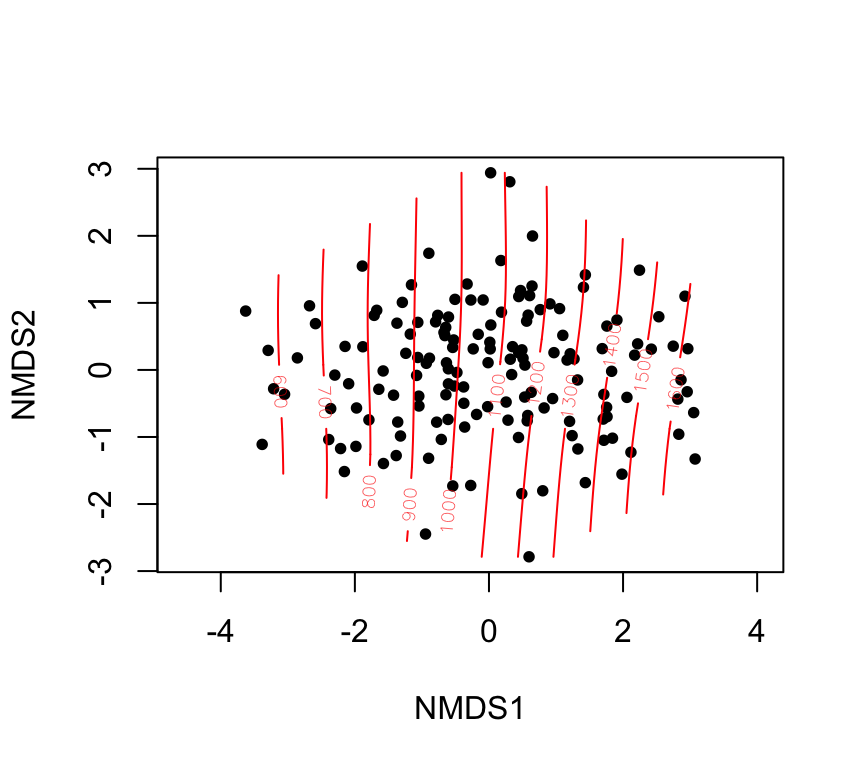

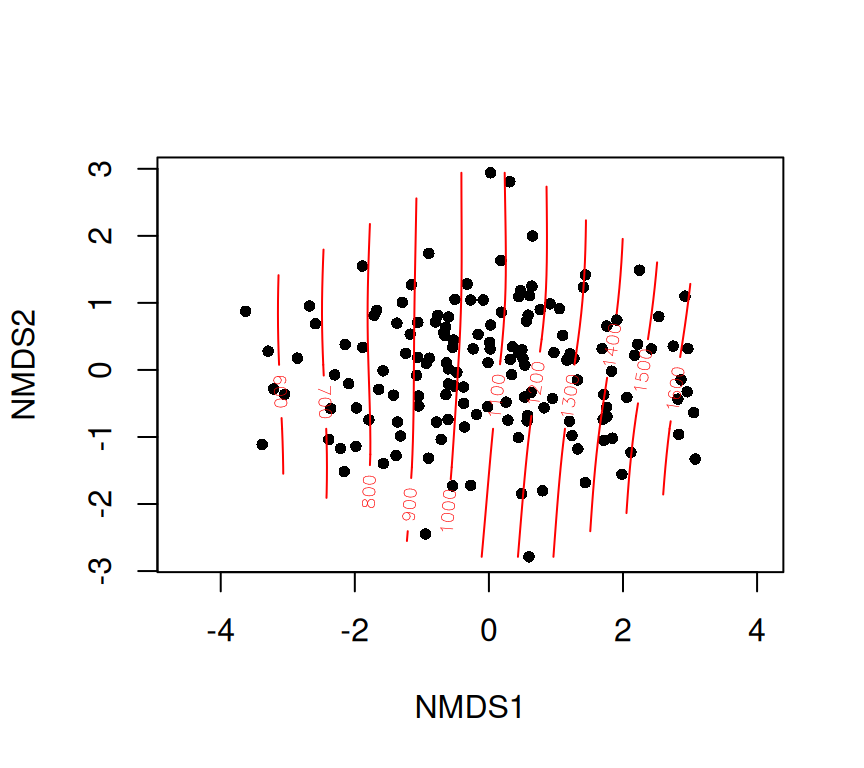

plot(nmds, type = "n")species scores not availablepoints(nmds, display = "sites", pch = 16, cex = 0.8)
ordisurf(nmds ~ thousand.years, data = skull, add = TRUE)
Family: gaussian
Link function: identity
Formula:
y ~ s(x1, x2, k = 10, bs = "tp", fx = FALSE)
Estimated degrees of freedom:
2.98 total = 3.98
REML score: 1092.962 PCA can also be used to reduce multiple explanatory variable into a few uncorrelated components, which can then be used in multiple regression models. This is particularly useful when the predictors are highly correlated, as it helps to avoid multicollinearity issues.
The steps for this would be:
The “win” here is that the principal components are uncorrelated, which simplifies the regression analysis and interpretation. The “lose” is that the principal components may not have a straightforward biological interpretation, so care is needed when explaining the results.
Ordination is useful when we have multivariate data and when variables within that data are correlated. The correlation structure means that we can represent the data in a lower-dimensional space without losing too much information. If there is a lot of correlation among variables, then ordination becomes very useful. If there is little correlation, then ordination may not help much since most of the variance is spread evenly across many dimensions.
Summary:
Evelyn Chrystalla “E.C.” Pielou was a Canadian statistical ecologist. She began her career as a researcher for the Canadian Department of Forestry and the Canadian Department of Agriculture. Pielou’s books are classics that helped establish quantitative ecology. They range from the mathematics of ordination to kinds of (ecological) question ordination helps answer. A great place to start is The Interpretation of Ecological Data: A Primer on Classification and Ordination
